Model No: 7712R

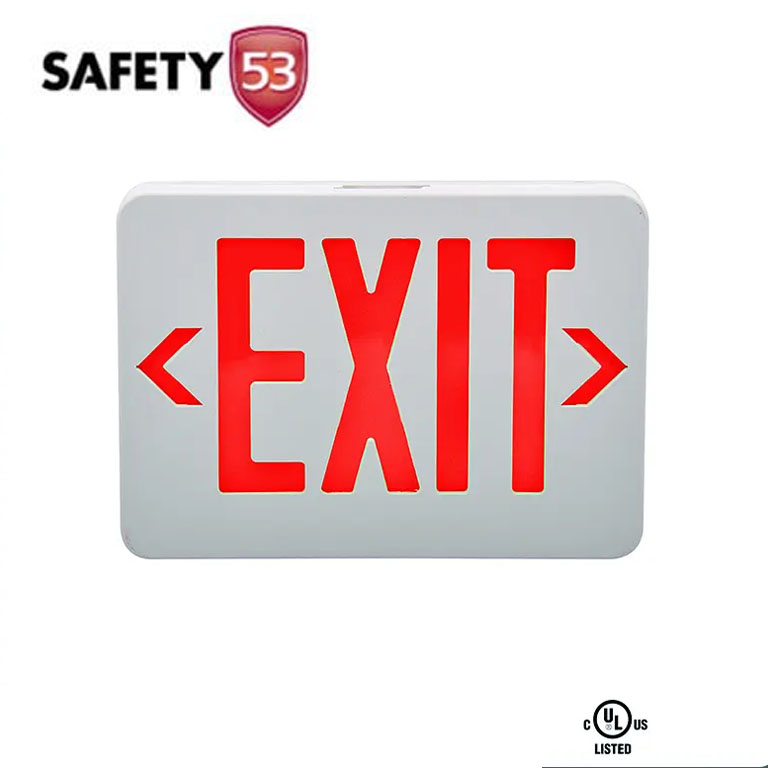

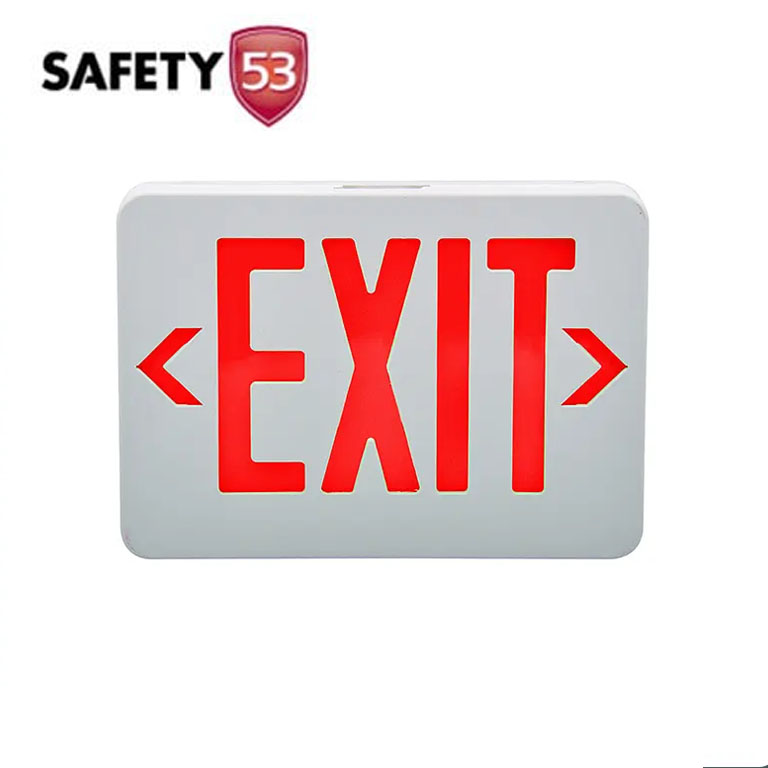

Emergency Exit Light Red (UL LISTED)

 6500 8000

Product Parameter:

  • Item No: LX-750G R
  • In put Voltage:AC120V/277V 50/60Hz
  • Light Source/Power:12pcs LED
  • AC Power:8w
  • Battery:Ni-Cd 4.8V/650mAh
  • Emergency Duration:≥3Hours
  • Material:Fire retardant ABS Housing
  • Lumen:>8cd/m²

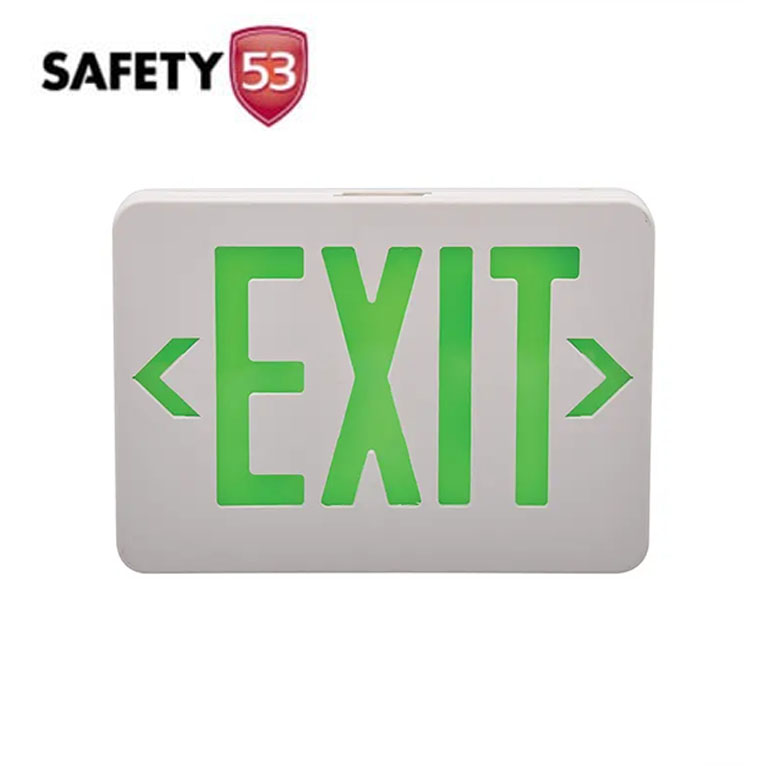

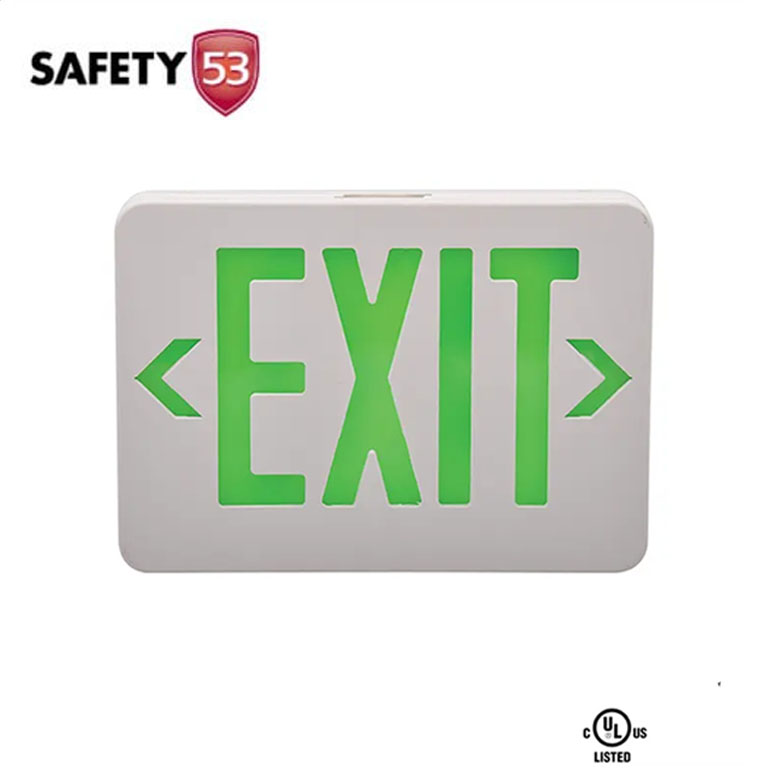

  • Color:Green/Red

    Request Quote Form

    Tags: , , , ,


    • *Fire retardant ABS housing, safe material for fire protection
    • *12PCS LEDs inside housing,two colors green and red are available
    • *Charge indicator light and test button can show us function at any time to ensure the light is workable
    • *Input Voltage:120V/277V AC 50/60HZ for different electricity demand
    • *Rated Power:8W
    • *Nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 650MAH,it is rechargeable battery,24 hours charging time with battery overcharge and discharge protection
    • *UL approval fire exit signs are suitable for USA,middle east market
    • *Multiple –Mounting:The LED exit sign is available for ceiling mounting,backside mounting and side mounting
    • *Single or Double faces are optional: Extra face plate included for optional double sided use.The bracket is packed inside of the light housing
    • *Each exit sign light with removeable directional arrow inserts in accessory bag
    • *Suitable for both commercial and residential areas
    • *1PC emergency exit sign is packed into a white box or color box,10PCS/master carton, customized packaging is available

    What to do in case of fire:
    1. Do not be panic, stay calm.
    2. Leave the building as quickly as possible. Touch doors to feel if they are hot before opening them. Use and alternate exit if necessary. Crawl along the floor to stay below dangerous smoke, and don’t stop to collect anything.
    3. Meet a pre-arranged meeting place outside the building.
    4. Call the fire department form outside the building.
    5. Do not go back inside a burning building. Wait for the arrival of the fire department. Caution: Always turn off power at main fuse box or circuit breaker before taking troubleshooting action. Do not disconnect battery or AC power to quiet an unwanted alarm. This will remove your protection.Fan the air or open a window to remove smoker or dust.


    1. UL924 standard, UL 94V-0 flame rating
    2. Single or double face configuration
    3. Long life LED Lighting
    4. Wall, side or ceiling mounting
    5. Removeable directional arrow inserts
    6. 24 hours charging time
    7. Battery Overcharge protection
    8. Charing LED indicator and test button
    • Working temperature: -10℃-50℃
    • Working humidity:<90%
    • Used in Commercial/Residentials areas

    Additional information


    Battery, Cell
