Model No: LX-690

Emergency Beam Light

 4000 7500

Product Parameter:

  • Item No: LX-690 WB
  • In put Voltage:AC120V/277V 60Hz
  • Light Source/Power:Halogen bulb/2*6v/5w
  • AC Power:6w
  • Battery:Lead-Acid 6v 4.5h
  • Emergency Duration:≥1.5Hours
  • Material:Fire retardant ABS Housing
  • Lumen:98LM
  • Color:White/Black

2 HEADS EMERGENCY LIGHT

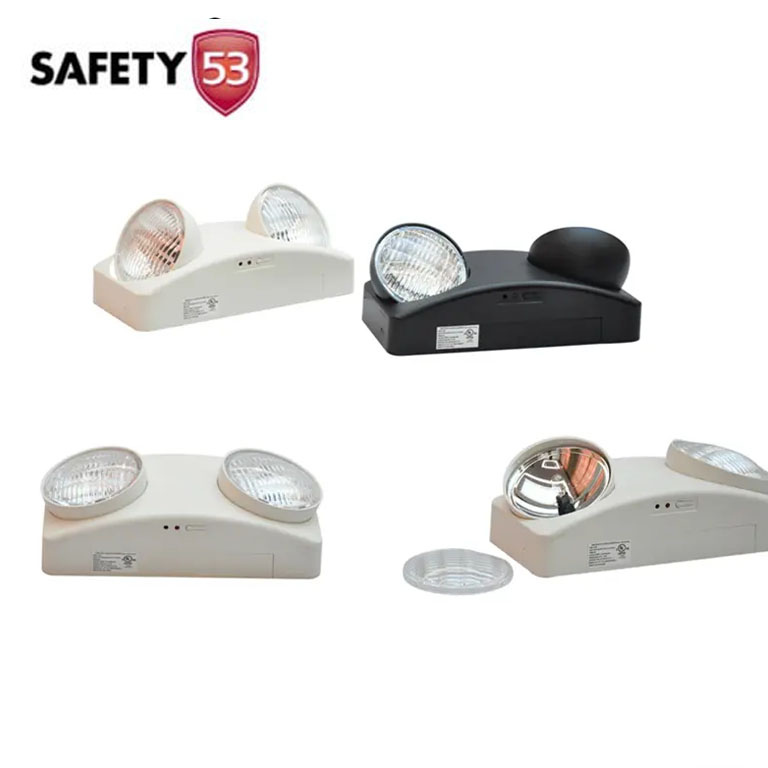

  • Durable fire retardant ABS housing, safe material, white and black 2 colors optional

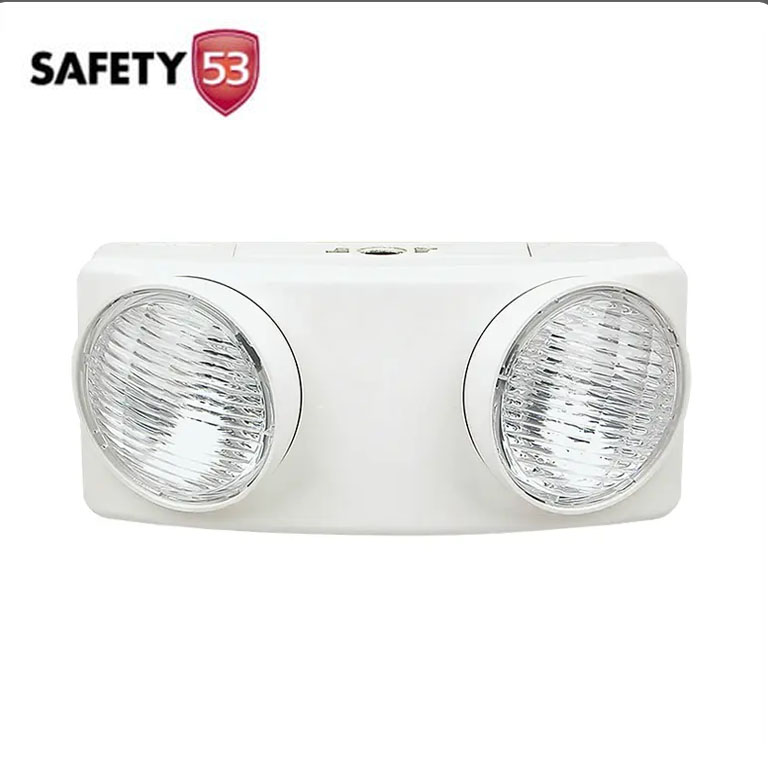

  • Light source: adjustable 2 round heads with halogen bulbs ,6V/5W for each
  • Test button and charge indicator light
  • Optional Voltage:120VAC and 277V AC for different electricity demand
  • Rated Power:6W
  • Lead-acid battery provides at least 90minutes backup power in the event of a power outage:6V 4.5Ah,rechargeable battery and 24hours for full recharging time,with overcharge and discharge protection
  • UL approval emergency led light suitable for USA,middle east market
  • Wall and ceiling mountable,operates in damp,but not wet,and dry conditions
  • 1PC LED emergency light is packed into a white box or color box, 6PCS/master carton,customized color box is available

SAFETY INSTRUCTIONS.

  • Review the diagrams thoroughly before beginning.If you feel you do not have electrical wiring experience,refer to a do-it-yourself wiring handbook or have your fixture installed by a qualified licensed electrician.
  • All electrical connections must be in accordance with local codes,ordinances,and the National Electric Code.If you are unfamiliar with methods of installing electrical wiring,secure the services of a qualified licensed electrician.
  • Before starting the installation,disconnect the power by turning off the circuit breaker or removing the appropriate fuse at the fuse box .Turning the power off using the light switch is not sufficient to prevent electrical shock.
  • Do not use outdoors.
  • Do not let power supply cords touch hot surfaces.
  • Do not mount near gas or electric heaters.
  • Use caution when servicing batteries.Battery acid can cause burns to skin and eyes.If acid is spilled on skin or in eyes,flush acid with fresh water and contact a physician immediately.
  • Equipment should be mounted in location and at heights where it will not readily be subject to tampering by unauthorized personnel.
  • The use of accessory equipment not recommend by the manufacturer may cause an unsafe condition.
  • Do not use this equipment for other than intended use.
  • All servicing should be performed by qualified personnel only.
  • Allow battery to charge for 24 hours before first use.

Features

  1. UL 924 standard, UL94V-0 flame rating
  2. Universal wall or ceiling mounting
  3. Longlife LED Bulbs
  4. 24 hours charging time
  5. Battery Overcharge protection
  6. Charing LED indicator and test button

Application

  • Working temperature: -10℃-50℃
  • Working humidity:<90%
  • Used in Commercial/Residental areas

Additional information

Options

Battery, Cell
