Model No: 7709

Combinational Exit Light

 8800 10500

Product Parameter:

  • Item No: LX-7501LG/R
  • In put Voltage:AC120V/277V 60HZ
  • Light Source/Power:12pcs Leds+2*10pcs Leds
  • AC Power:7.5W
  • Battery:Lead-Acid 6v 4.5h
  • Emergency Duration:≥3Hours
  • Material:Fire retardant ABS Housing
  • Lumen:>8cd/m²
  • Color:Green/Red

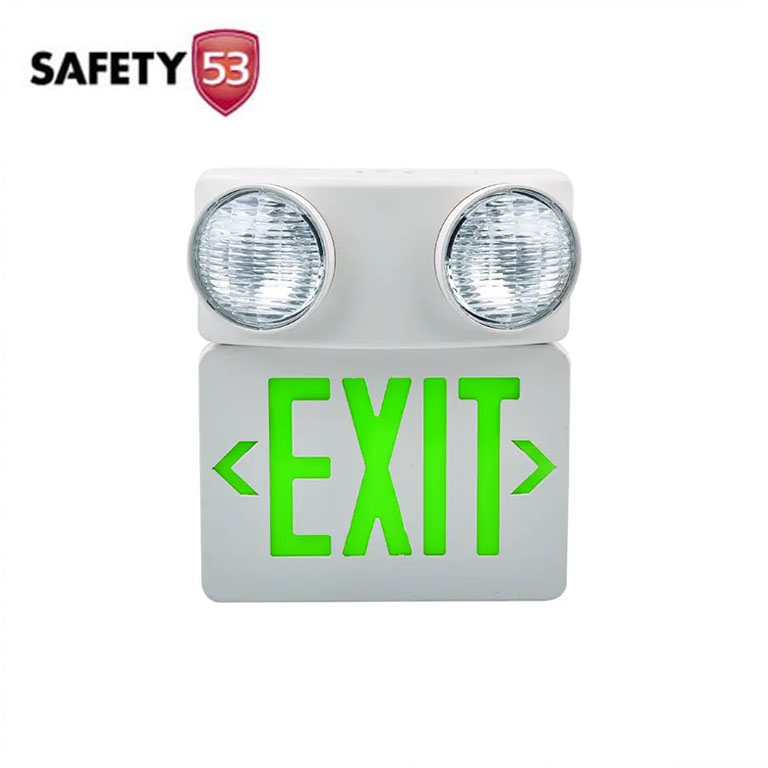

This is an exit sign with emergency lights.

  • Fire retardant ABS housing, safe material for fire protection

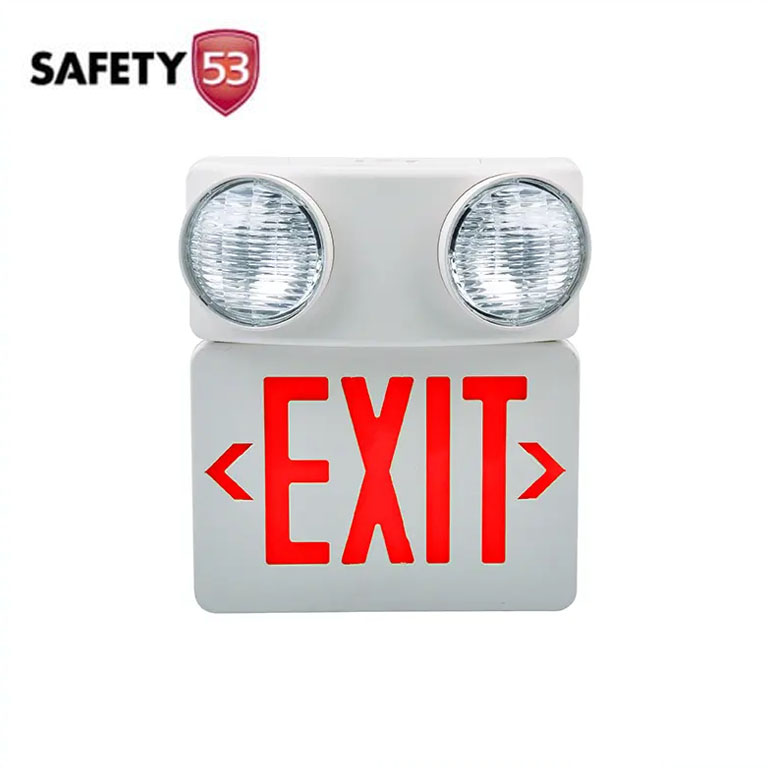

  • Exit sign with 12pcs led lights inside the housing,we can choose red color or green color for the word EXIT.

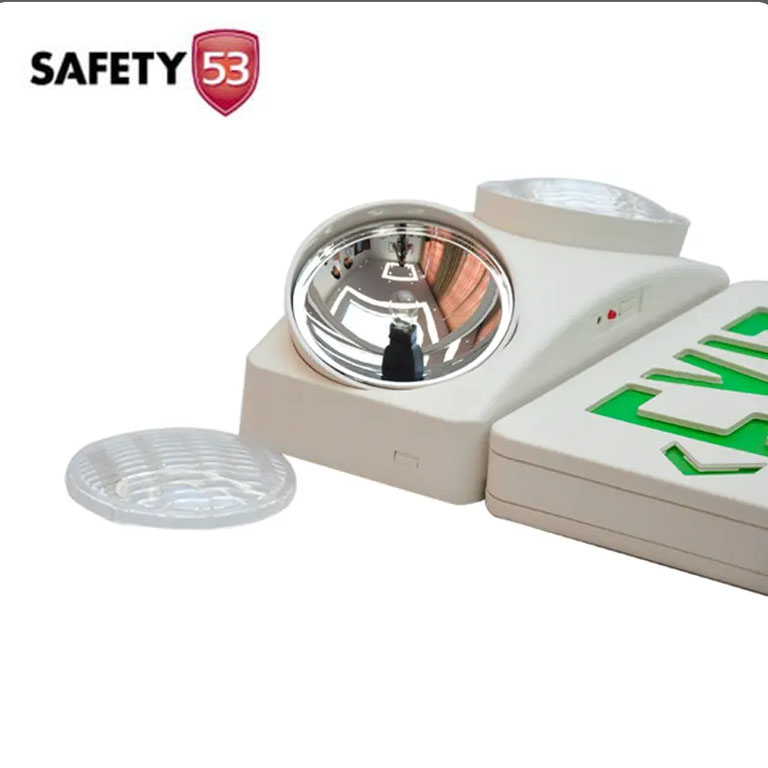

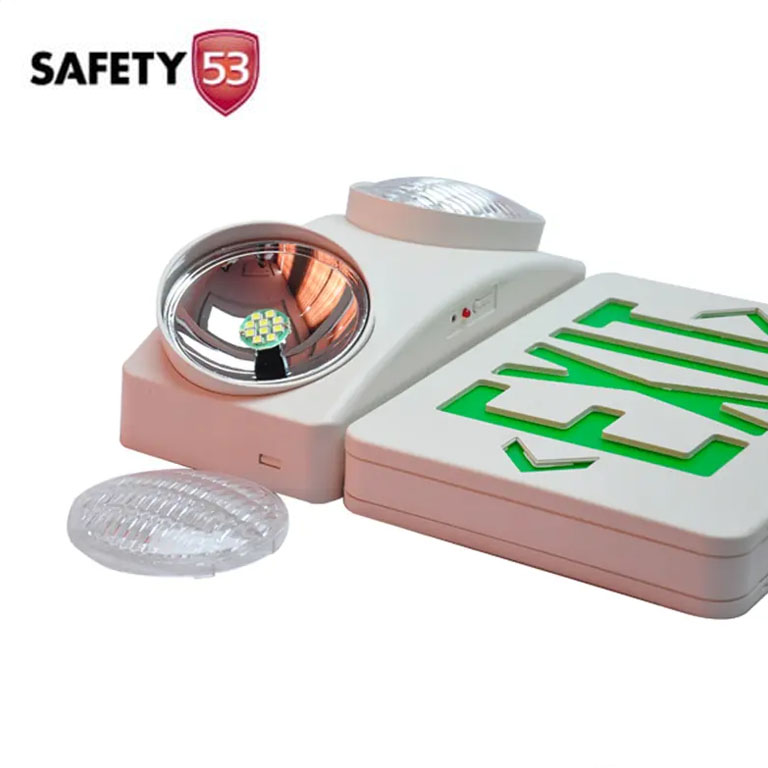

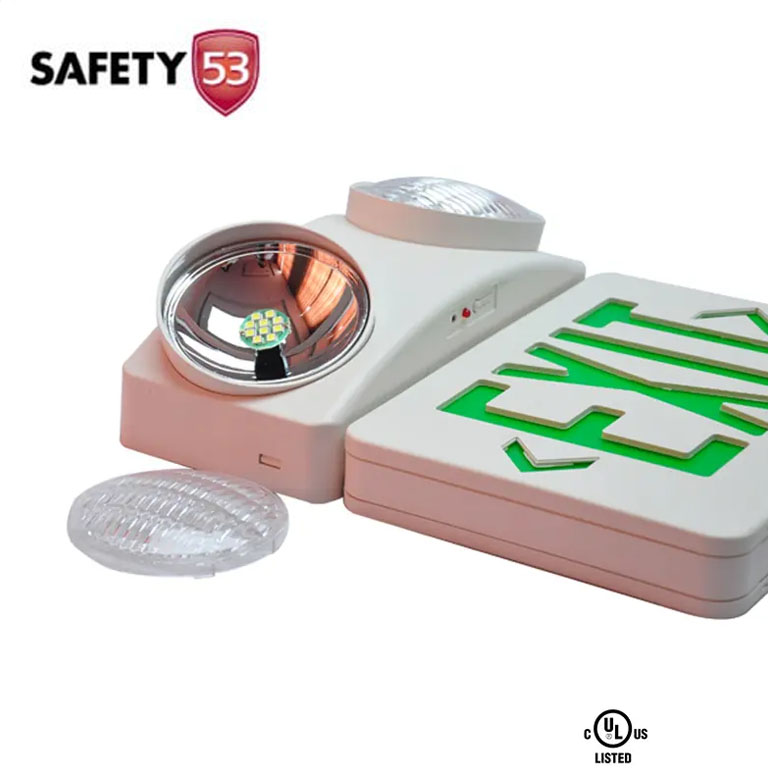

  • The upper emergency light is composed of 2 round led heads and each head has 10pcs SMD leds.We can adjust the angle of the round head to give better lighting.
  • Charge indicator light and test button can show us function at any time to ensure the light is workable
  • Input Voltage:120V/277V AC 60HZ for exit sign lamps in normal state
  • Rated Power:7.5W
  • Lead acid battery provides at least 3hours backup power in the event of a power outage:6V 4.5AH,it is rechargeable battery,24 hours charging time with battery overcharge and discharge protection
  • UL approval, the emergency exit sign light is suitable for USA,middle east market

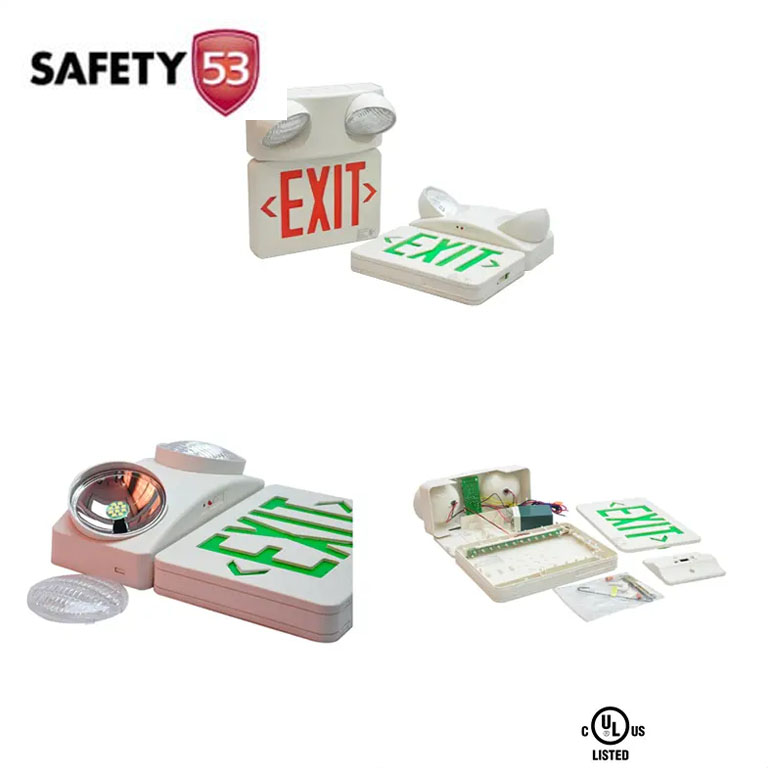

  • Innovative snap-together design allows for fast installation
  • Replaceable directional chevron inserts are easily removed and reinserted
  • Suitable for both commercial and residential areas
  • 1set emergency exit sign is packed into a white box or color box,4 sets/master carton, customized packaging is available


  1. UL 924 standard, UL 94V-0 flame rating
  2. Single or double face configuration
  3. Longlife LED lighting
  4. Wall,side or ceiling mounting
  5. Removeable directional arrow inserts
  6. 24 hours charging time
  7. Battery Overcharge protection
  8. Charing LED indicator and test button


  • Working temperature: -5℃-45℃
  • Working humidity:<90%
  • Used in Commercial/Residental areas

Additional information


Battery, Cell
