Model No: 6450

Hangiing Exit Light


Product Parameter:

  • Item No:LX-740G/R
  • In put Voltage:AC120V/277V 50/60Hz
  • Light Source/Power:12pcs LED
  • AC Power:5W
  • Battery:Ni-Cd 4.8V/650mAh
  • Emergency Duration:≥3Hours
  • Material:Aluminum housing + acrylic panel
  • Lumen:>8cd/m²
  • Color:Green/Red

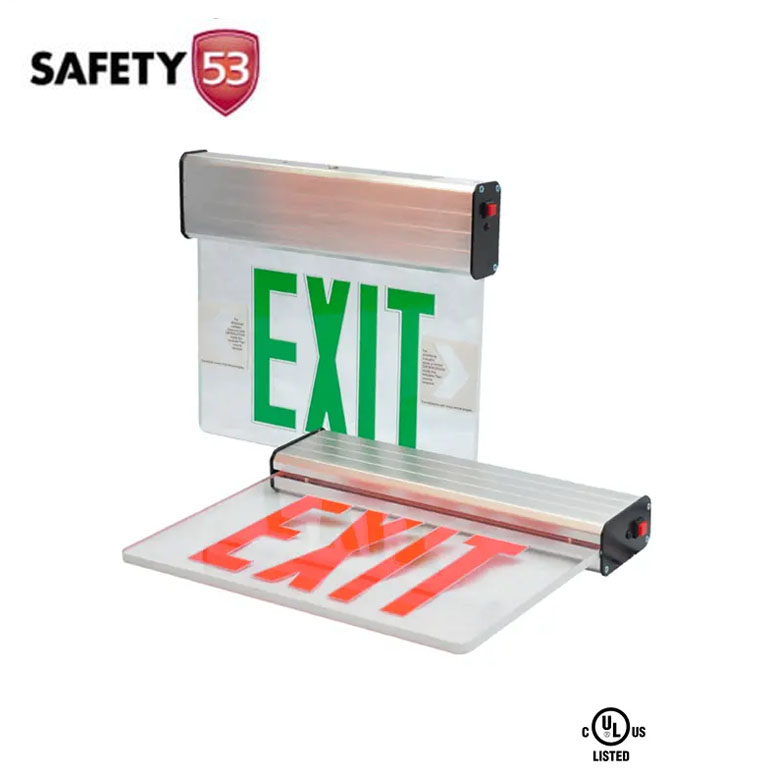

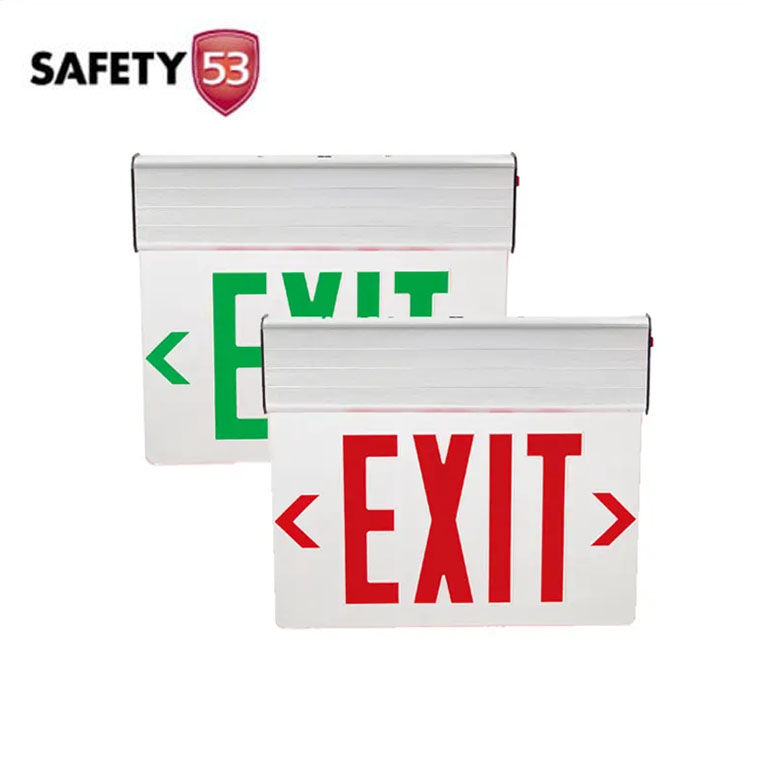

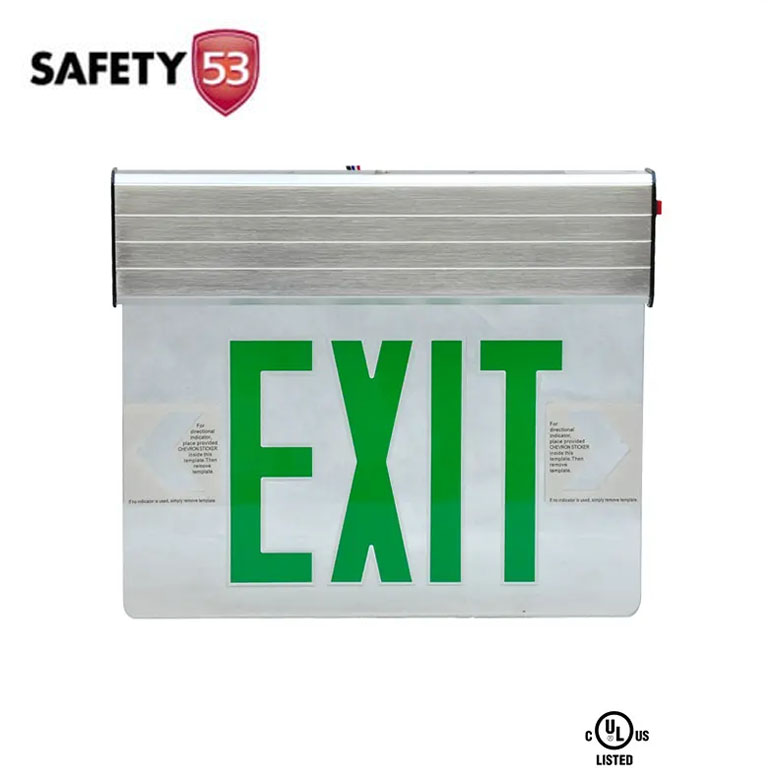

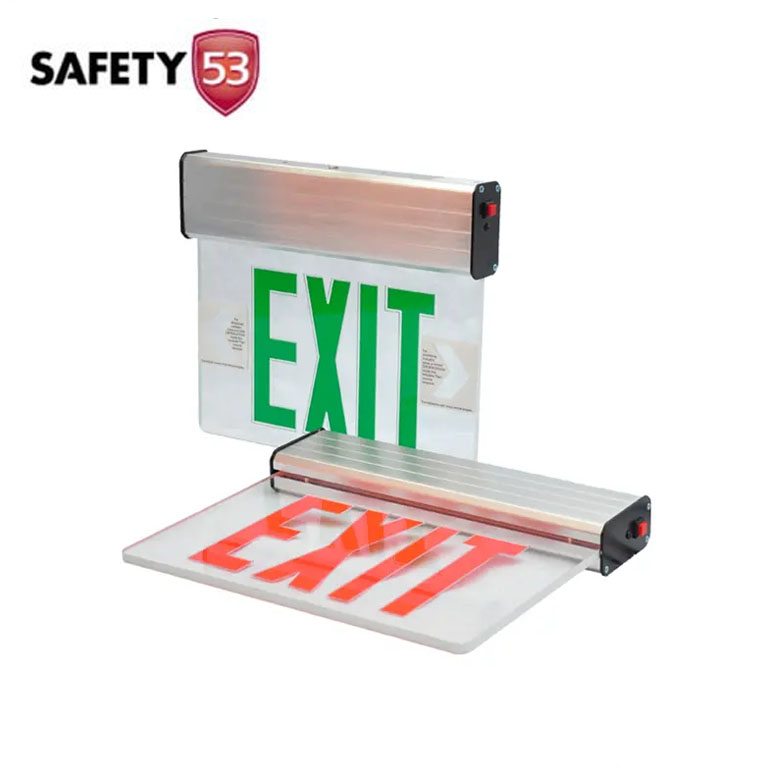

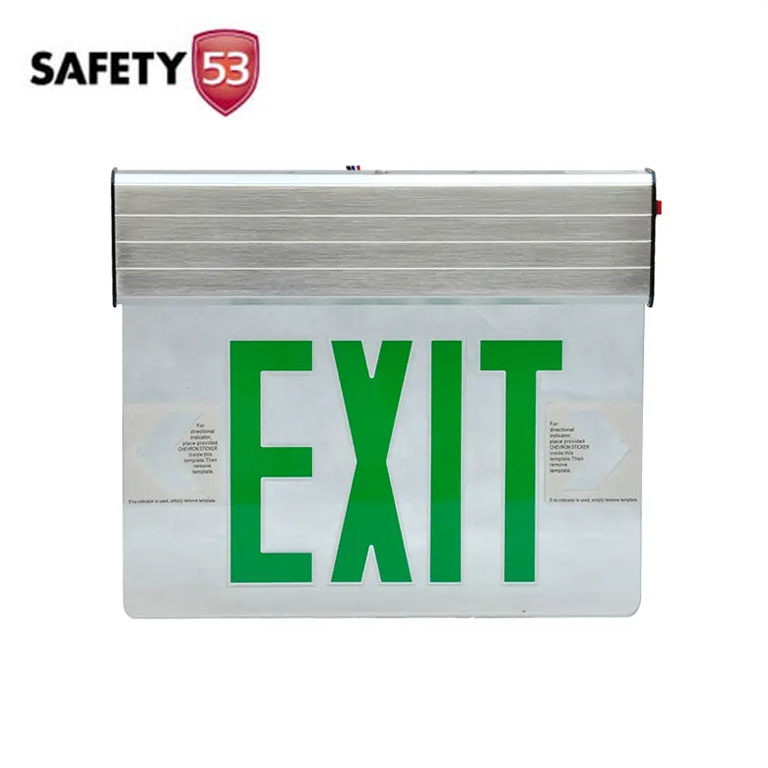

Exit sign emergency lighting.

  • Aluminum housing, clear acrylic plate with “EXIT” in red or green
  • Single face configuration
  • 12PCS LEDs inside housing,two colors green and red are available
  • Charge indicator light and test button can show us function at any time to ensure the light is workable
  • Dual Voltage optional:120V/277V AC 50/60HZ for different electricity demand
  • AC Power:5W
  • Nickel cadmium battery provides at least 3hours backup power in the event of a power outage:4.8V 650mAh, it is rechargeable battery, maximum 24 hours for full recharge,with battery overcharge and discharge protection
  • UL approval fire exit signs are suitable for USA,middle east market
  • 3 kinds of mounting method:The LED exit sign is available for ceiling mounting,backside mounting and end mounting
  • Each exit sign light with removeable directional stickers in accessory bag
  • Suitable for both commercial and residential areas


1.If you feel you do not have electrical wiring experience, refer to a do-it-yourself wiring handbook or have your fixture installed by a qualified licensed electrician.

2.All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code. If you are unfamiliar with methods of installing electrical wiring, secure the services of a qualified licensed electrician.

3.Before starting the installation, disconnect the power by turning off the circuit breaker or removing the appropriate fuse at the fuse box .Turning the power off using the light switch is not sufficient to prevent electrical shock.

4.Do not use outdoors.

5.Do not let power supply cords touch hot surfaces.

6.Do not mount near gas or electric heaters.

7.Equipment should be mounted in location and at heights where it will not readily be subject to tampering by unauthorized personnel.

8.The use of accessory equipment not recommend by the manufacturer may cause an unsafe condition.

9.Do not use this equipment for other than intended use.

10.All servicing should be performed by qualified personnel only.

11.Allow battery to charge for 24 hours before first use.

12.Use flexible conduit only.


  1. UL 924 standard, UL 94V-0 flame rating
  2. Single or double face configuration
  3. Longlife LED lighting
  4. Wall,side or ceiling mounting
  5. Removeable directional arrow inserts
  6. 24 hours charging time
  7. Battery Overcharge protection
  8. Charing LED indicator and test button


  • Working temperature: -5℃-45℃
  • Working humidity:<90%
  • Used in Commercial/Residental areas

Additional information


Battery, Cell
