Model No: Kitenark

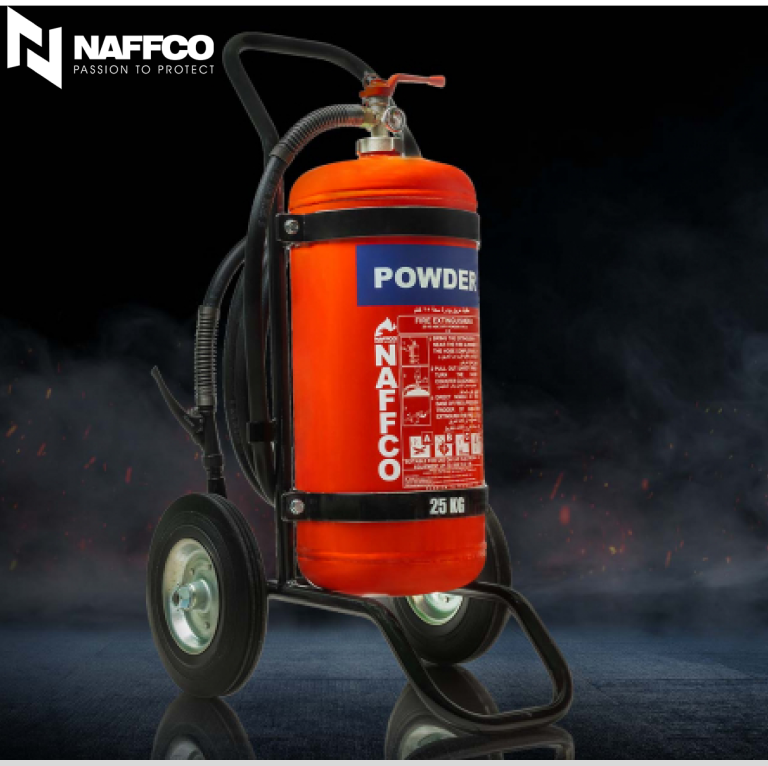

Fire Extinguisher Trolley DCP

 125000 225000

Product Details:

  • The fire extinguishers are designed to comply all the specification requirements of BS EN 1866-1.
  • Kitemark & LPCB approved for different capacity extinguishers.
  • Cylinders compliance to council directive 2014/68/EU (PED) is certified by BSI (2797)
  • Highest fire rating due to high performance ABC powder.
  • Ready for instant use and simple to operate.
  • Fully controlled and easy operation by rust free brass valve.
  • Cart and cylinder are made of rugged steel and welded to meet extreme use conditions.
  • Easily transportable & Field rechargeable.
  • Highly visible pressure-indicating gauge.
  • Externally coated by Electrostatic powder painting after shot blasting ensures maximum corrosion resistance.
  • Brass nickel plated head valve with simple lever operation.
Tags: , , , , ,
Model Number NTP25 NTP50 NTP100
Extinguisher capacity 25 kg 50 kg 100 kg
Fire Rating IIB & IIIB IVB IVB
Working Pressure 18 bar 18 bar 18 bar
Maximum Working Pressure 22 bar 22 bar 22 bar
Test Pressure 32 bar 32 bar 32 bar
Total Height & Width 1025 x 500 mm 1065 x 550 mm 1105 x 650 mm
Total Weight Approx. 63 kg Approx. 100 kg Approx. 172 kg
Range of Discharge 7-9 m 7-9 m 8-9 m
Duration of Discharge 25-30 sec 47-55 sec 85-90 sec
Operating Temperature -20°C to +60° C -20°C to +60° C -20°C to +60° C
Propellant Nitrogen Nitrogen Nitrogen
Hose size & Length 16 mm x 5 m 16 mm x 5 m 16 mm x 7 m
Cylinder Material Hot rolled steel plate

Additional information

Weights

25 kgs, 50 kgs
