Model No: Kitemark

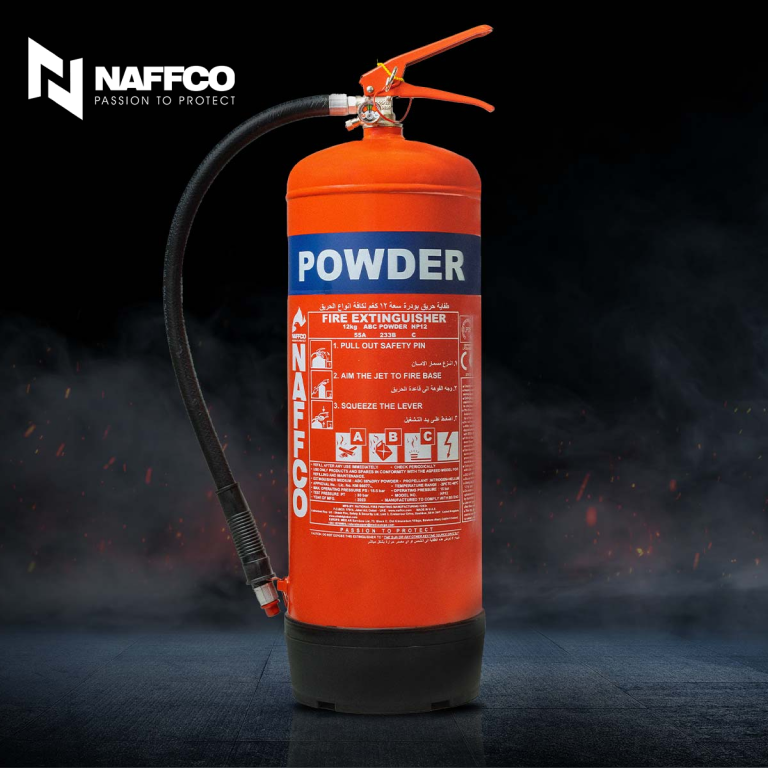

Portable Fire Extinguishers DCP

 5000 40000

Product Details:

  • Mono-ammonium phosphate based dry chemical agent. Capable of fighting Class A, B, C and E fires.
  • Kitemark / LPCB certified to BS EN3.
  • Cylinders compliance to council directive 2014/68/EU (PED) is certified by BSI (2797).
  • Certified by BSI under marine equipment directive, 2014/90/EU (MED)
  • High quality polyester paint.
Tags: , , , , , ,
  • Mono-ammonium phosphate based dry chemical agent. Capable of fighting Class A, B, C and E fires.
  • Kitemark / LPCB certified to BS EN3.
  • Cylinders compliance to council directive 2014/68/EU (PED) is certified by BSI (2797).
  • Certified by BSI under marine equipment directive, 2014/90/EU (MED)
  • High quality polyester paint.
  • Controlled discharge.
  • Brass nickel plated head valve with simple squeeze operation.
  • Unique gauge testing system.
  • Unique color coded handle and base (optional).
  • Rechargeable and easy to service.
  • Choice of capacity from 1 to 12 kg.
Model Number NP1 NP2 NP3 NP4 NP6 NP9 NP12
Extinguisher Capacity 1 kg 2 kg 3 kg 4 kg 6 kg 9 kg 12 kg
Propellant 95% Nitrogen + 5% Helium
Fire Rating 8A 34B 13A 70B 21A 89B 21A 113B 34A 183B 43A 233B 55A 233B
Working Pressure 14 bar 14 bar 14 bar 15 bar 15 bar 15 bar 15 bar
Maximum Operating Pressure 18.5 bar @ 60°C
Test Pressure 30 bar
Total Weight 2.0 kg 3.7 kg 5.8 kg 7.5 kg 10 kg 14 kg 17.8 kg
Range of Discharge 4-5 m 5-7 m 6-7 m 7-8 m 6-8 m 6-8 m 6-8 m
Duration of Discharge 7-9 sec. 10-12 sec. 11-12 sec. 13-15 sec. 18-20 sec. 22-24 sec. 28-30 sec.
Hose Length with Nozzle N/A N/A 395 mm 457 mm 534 mm 534 mm 617 mm
Operating Temperature -20°C to +60°C
Cylinder Material CRCA Steel
Height x Diameter (mm) 372 x 78 385 x 110 420 x 132 408 x 150 520 x 150 534 x 185 620 x 185

Additional information

Weights

1 Kg, 2 kgs, 3 kgs, 4 kgs, 6 kgs, 9 kgs, 12 kgs
