Model No: BWC2

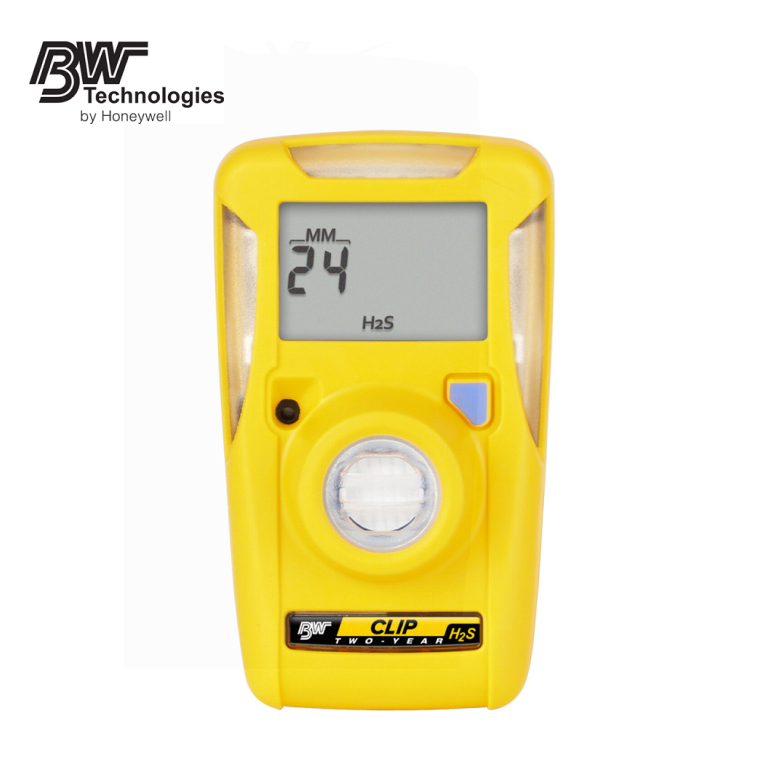

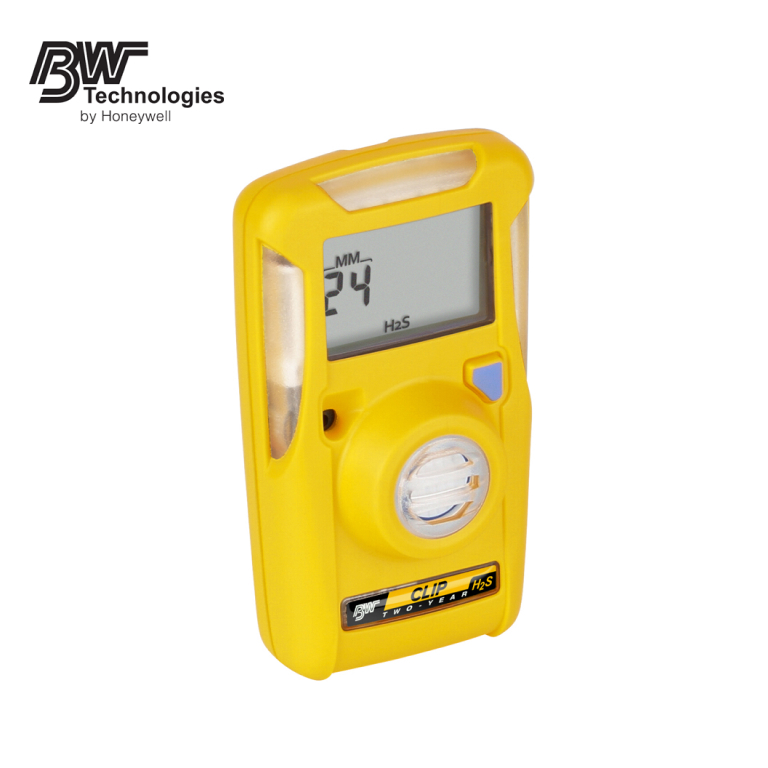

BW Clip 2 Year Single Gas Detector

  • SIZE: 1.6 x 2.0 x 3.4 in. / 4.1 x 5.0 x 8.7 cm
  • Humidity: 5% – 95% RH (non-condensing)
  • WEIGHT: 3.2 oz. / 92 g
  • ALARMS: Visual, vibrating, audible (95 dB) • Low, High
  • TESTS Activated detectors automatically perform one internal diagnostic test every 24 hours.

    Request Quote Form


    The most user-friendly, reliable and cost-effective way to ensure safety, compliance and productivity.

    The BW Clip single-gas detector is your everyday companion for hazardous environments. It operates up to three years maintenance-free: Just turn on the device and it runs continuously – no need for calibration, sensor replacement, battery replacement or battery charging. That means great reliability and no downtime.

    Plus, with the two-year BW Clip for H2S or CO, you can put the device in a hibernation case when you’re not using it for a week or more – and extend its life by that period of time.

    Compatible with both the MicroDock II and the IntelliDoX instrument management systems, the BW Clip is engineered to the highest standards of quality and reliability, keeping you safe and compliant.

    Use our unique advanced technology for safety, compliance and productivity.

    Surecell™: unique dual reservoir sensor design dramatically improves instrument performance, response time, and longevity compared to traditional electrochemical sensors and consistently delivers reliable instrument performance under the harshest environmental conditions

    Reflex Technology™: advanced automated self-test function routinely checks the operating condition of the sensor to increase safety, up-time, and overall worker confidence

    IntelliDoX: instrument management system

    • The quickest bump test in the industry
    • Confi guration of alarm set points and more
    • Performing different tests for up to five BW Clip detectors at once – for maximum productivity
    • Easy and accurate record-keeping

    BW Clip Standard Features:

    • Maintenance-free: no sensor or battery changes necessary
    • Compact, lightweight design with one-button operation
    • Designed for a range of harsh environments and extreme temperatures
    • Hibernation mode with case accessory or IntelliDoX
    • Automated self-test of battery, sensor and electronics
    • Wide-angle flash, which alerts simultaneously with audible and vibrating alarm
    • Automatic logging of the 35 most recent gas events and bump test results
    • Compatible with MicroDock II and Fleet Manager II software
    • Affordable, with low cost of ownership

    Configureable Options:

    • Configuration of high and low alarm set points before the device is activated
    • Adjustment of alarm set points and other parameters as needed throughout the lifespan
    • Option to enable the noncompliance indicator, which flashes red when a bump test is due or a gas event occurs
    • Option to display gas reading during alarm
    • User settable bump test reminder
    • Option to display the Real Time Clock

    Technical Specifications

    Size 1.6 x 2.0 x 3.4 in. / 4.1 x 5.0 x 8.7 cm
    Weight 3.2 oz. / 92 g
    Temperature H2S: -40 to +122°F / -40 to +50°C
    CO: -22 to +122°F / -30 to +50°C
    O2: -4 to +122°F / -20 to +50°C
    SO2: -22 to +122°F / -30 to +50°C
    Humidity 5% – 95% RH (non-condensing)
    Alarms Visual, vibrating, audible (95 dB) • Low, High
    Tests Activated detectors automatically perform one internal diagnostic test every 24 hours.
    Typical battery life Two years (H2S, CO, O2 or SO2) or three years (H2S or CO)
    Event logging 35 most recent events
    Ingress Protection IP 66/67

    Sensor Specifications

    Gas
    Measuring Range
    Low Alarm Level
    High Alarm Level
    2 or 3 year detector
    H2S
    0 -100 ppm
    10 ppm
    15 ppm
    CO
    0 – 300 ppm
    35 ppm
    200 ppm
    2 year detector only
    O2
    0 – 25.0 % by vol.
    19.5 %
    23.5 %
    SO2
    0 – 100 ppm
    5 ppm
    10 ppm
