Model No: Max-XT-II

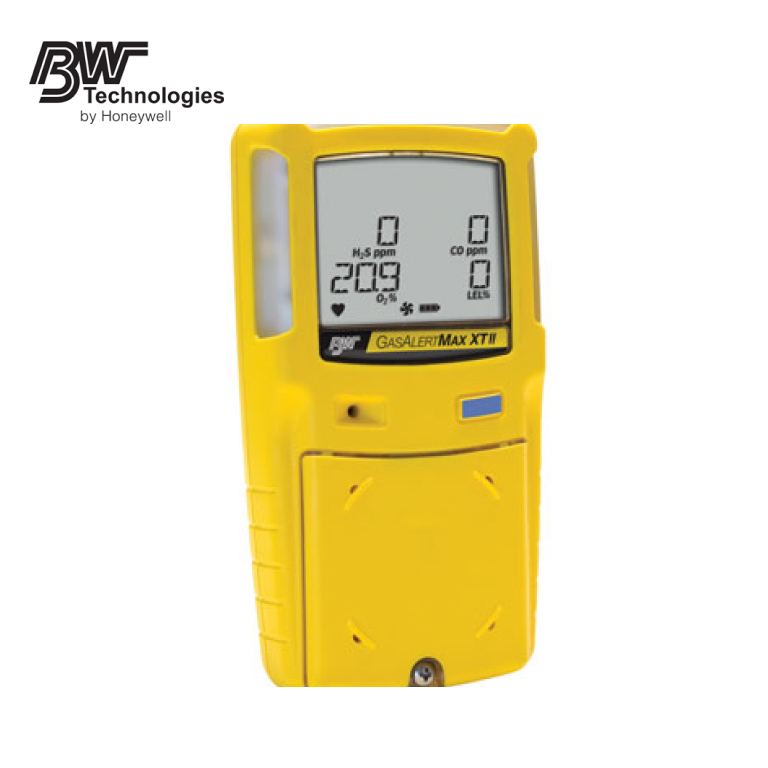

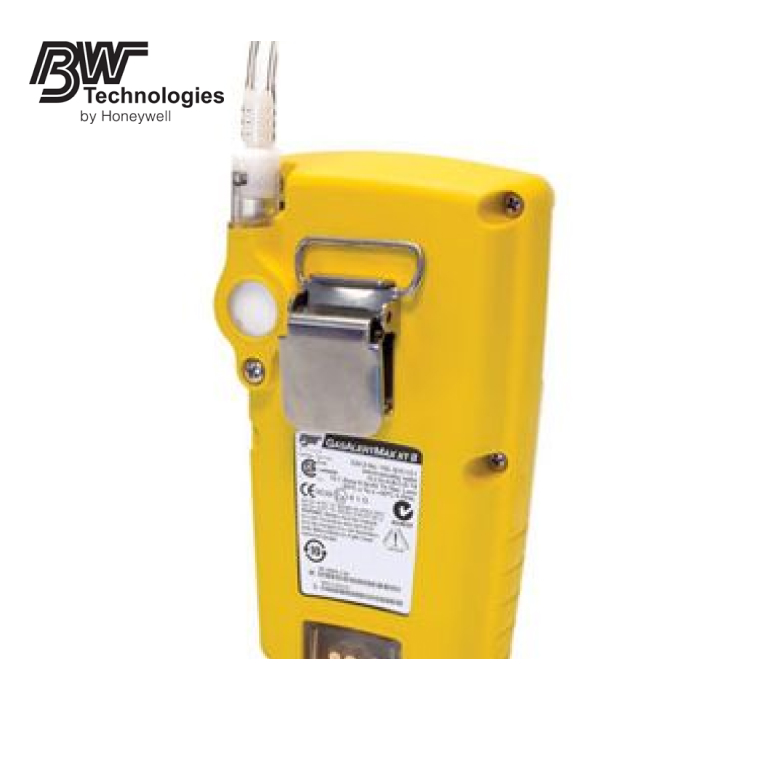

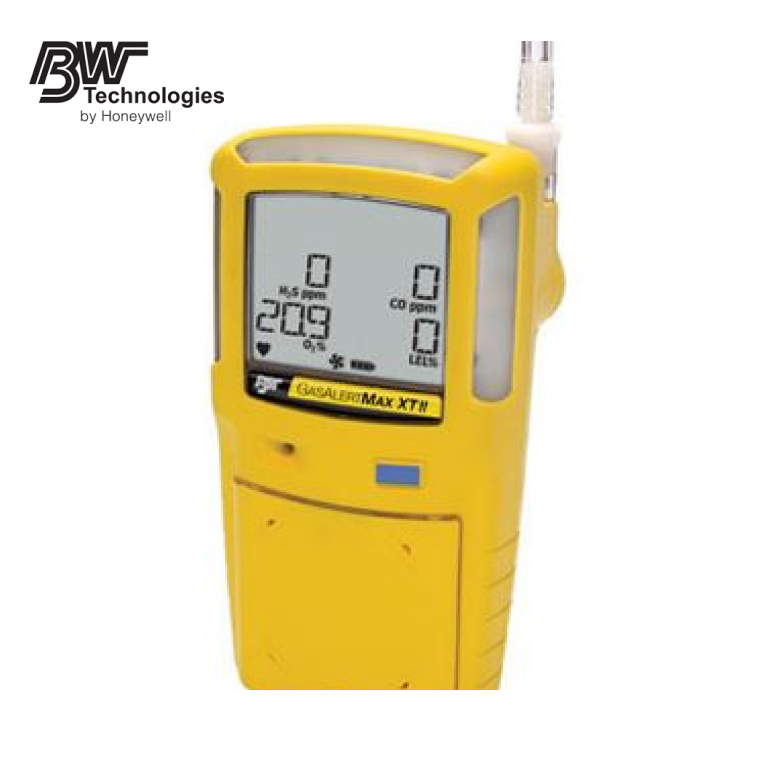

GasAlertMax XT II Multi Gas Detector
-
- SIZE: 5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm
- WEIGHT: 11.1 oz. / 316 g
- OPERATING TEMPERATURE: -4 to 122ºF / -20 to 50ºC
- HUMIDITY 10 – 100% RH (non-condensing)
Go the distance, and save
GasAlertMax XT II is the smart, simple, economical way to compliance. Workers feel safe and incidents are minimized so everyone will be able to do more. That means savings realized from business continuity and productivity.
Simple operation, with SmartSample pump.
GasAlertMax XT II reliably monitors up to four hazards and combines straightforward one-button operation with our robust, motorized pump for intelligent, remote sampling, ideal for confined spaces. The GasAlertMax XT II is fully compatible with MicroDock II automated test and calibration system.
- Minimize costs and training with one-button operation
- More accurate sampling results with SmartSample pump technology
- Compact, comfortable and field tough
Standard features of BW products:
- Continuous LCD shows real-time gas concentrations
- Compact and lightweight design makes it comfortable to wear
- Water-resistant
- Simple automatic calibration procedure; compatible with BW MicroDock II automatic test and calibration station
- Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms on start up
- Bright wide-angled visual alarm bars
- Built-in concussion-proof boot
Additional GasAlertMax XT II features:
- Integrated sampling pump with reliable diaphragm technology
- Best in class block detection with semi-conductor pressure sensor
- Multi-language support in English, French, German, Spanish and Portuguese
- Conveniently manage your detector with Fleet Manager II
- Equipped with standard datalogging and event logging
Technical Specifications
Size | 5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm |
Weight | 11.1 oz. / 316 g |
Temperature | -4 to 122ºF / -20 to 50ºC |
Humidity | 10 – 100% RH (non-condensing) |
Alarms | – Visual, vibrating, audible (95dB) – Low, High, STEL, TWA, OL (over limit), Low Battery, Pump |
Tests | Audible/visual alarms on activation, sensors, battery, pump and circuitry (continuous) |
Typical battery life | 13 hours @ 32ºF / 0ºC 10 hours @ -4ºF / -20ºC Recharges in 6 hours |
Pump draw | Sample from up to 66 ft. / 20 m |
User options | Confidence beep Force calibration when, Safety (sensor) lock overdue, Latching alarms Sensor configuration, Safe display mode Detector identification, Calibration IR lock Low alarm acknowledge, Location selection Language choices (5), Force block test Set custom start-up message, Force bump test when Confidence interval, overdue Datalog interval |
Sensor Specifications
Gas | Measuring Range | Resolution |
H2S | 0-200 ppm | 1 ppm |
CO | 0-1000 ppm | 1 ppm |
O2 | 0-30.0% | 0.1% |
Combustible gases | 0-100% LEL 0-5.0% v/v |
1% 0.1% |
