Addressable Call Point- Resettable

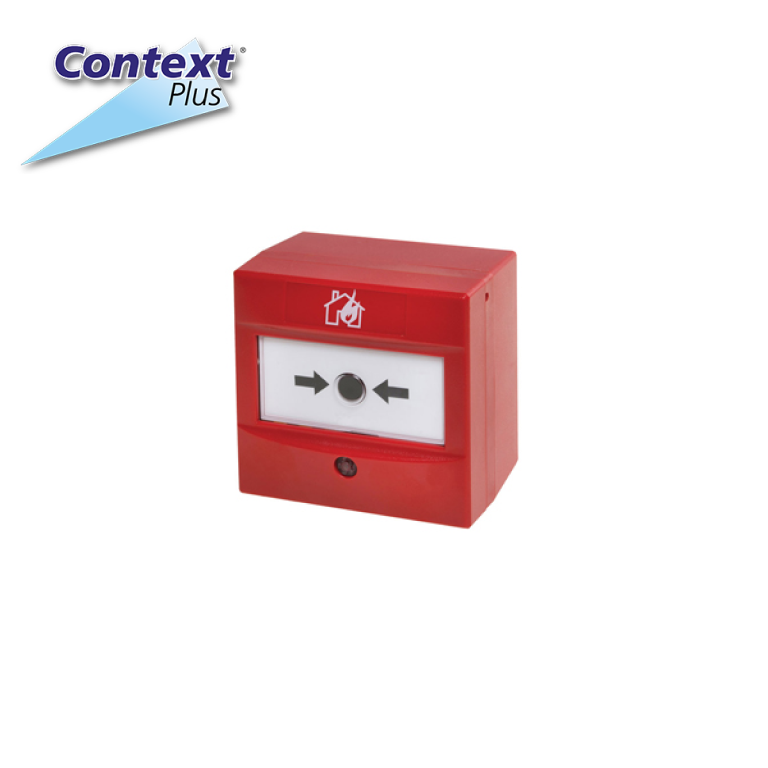

Context Plus Intelligent Addressable Red Manual Call Point

Reliable Emergency Activation | Resettable Element | Built-In Loop Isolator

The Context Plus Intelligent Addressable Manual Call Point is a premium fire safety device designed for seamless integration into addressable fire alarm systems. With advanced signaling, easy maintenance, and reliable performance, it ensures prompt manual alarm activation in emergency situations.

This unit operates on a loop of intelligent detection devices and communicates directly with the control panel using an interrupt feature within the advanced digital protocol. Activation is simple and intuitive — a firm press on the resettable element instantly triggers an alarm signal to the control panel.

Key Features:

✅ Resettable Operating Mechanism

• Clear visual confirmation of activation via yellow and black indication bars and a solid red LED

• Easy front reset using the supplied ergonomic reset key — no disassembly required

✅ Advanced LED Indicators

• 170° viewable LED for wide-angle visibility

• Solid red LED for alarm status

• Flashing yellow LED for faults, and flashing green when the device is polled

• Solid yellow LED indicates short circuit isolator activation

✅ Built-In Short Circuit Isolator

• Ensures loop integrity and continued operation even during a short circuit

• Certified to EN 54-17, enhancing system resilience

✅ Flexible Address Configuration

• Each call point address is set via DIL switch at commissioning

• Supports individual device identification and precise system control

✅ Quick & Simple Installation

• Features a removable E-Z fit terminal block for fast wiring

• Includes a continuity link for cable insulation testing during installation

• Compatible with both semi-flush and surface mounting options

Certifications & Approvals:

• EN 54-11 (Manual Call Points)

• EN 54-17 (Short Circuit Isolators)

• LPCB Certified – Trusted global fire safety standard

Applications:

🛠 Industrial Facilities
🏢 Commercial Buildings
🏬 Shopping Malls & Retail Spaces
🏫 Educational Institutions
🏥 Healthcare Facilities
🏨 Hotels & Hospitality Venues

Why Choose the Context Plus Addressable Manual Call Point?

✔ Fast, intuitive manual activation in emergencies
✔ Resettable design reduces waste and improves readiness
✔ Built-in isolator safeguards your fire detection loop
✔ Compliant with international standards for total peace of mind
✔ Easy-to-install with smart wiring and reset tools included

Empower your fire detection system with the Context Plus Intelligent Manual Call Point — engineered for responsiveness, reliability, and rapid recovery.
