Model No: WA810450W

SYSBEL Toxic chemical safety storage cabinet FM and CE Approved

  • Model : WA810450W
  • Size : 165*109*46 cm
  • Certification:

    Request Quote Form

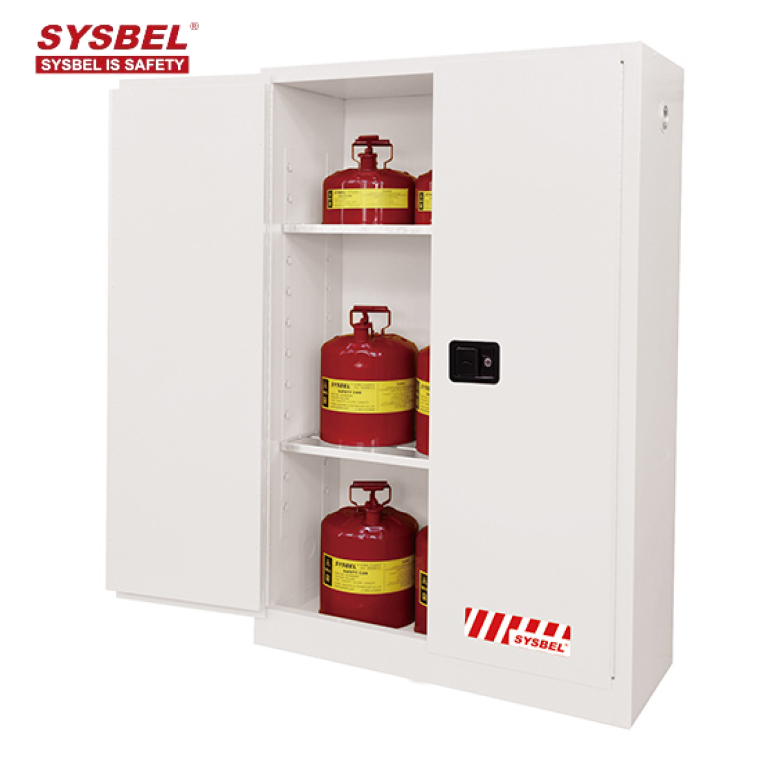

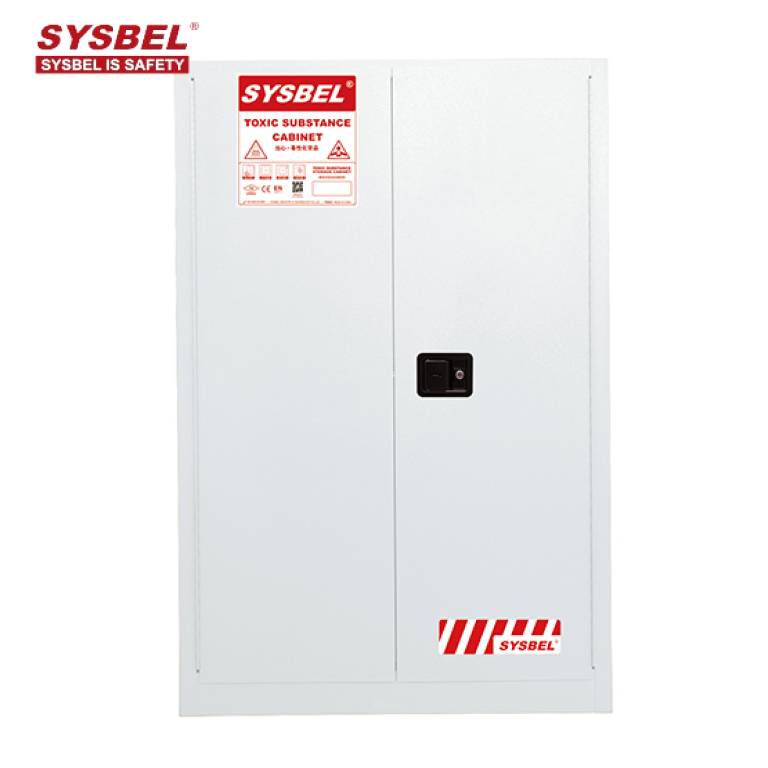

    SYSBEL CE and FM Approved 45 Gal Toxic chemical safety storage cabinet

    The FM-certified SYSBEL high-quality toxic chemical safety storage cabinet is dedicated to storing toxic chemicals, such as sodium cyanide, carbon dioxide, aniline and other chemicals marked “TOXIC” in MSDS. It is widely used in biopharmaceutical companies, universities, laboratories, scientific research institutes, etc.

    SYSBEL new model toxic cabinet (WA810455W) for hazardous Chemical materials safety storage in field of chemistry, school & industrial, etc., adopts GA/T 73-2015 mechanical anti-theft lock, double lock control design, improve the safety of the equipment, and effectively achieve the control, safety, anti-theft, collision resistance of dangerous chemicals; In addition, the unique three-point linkage structure makes it easy and convenient to unlock.

    Toxic cabinet details display:

    It is constructed by double-layer 18 Ga (1.2-mm) steel plate through spot welding, and the two layers are separated by 38mm to form a good fireproof insulation layer;
    Ventilation holes are set on the left and right sides to keep the air circulating in the cabinet and reduce the concentration of volatile toxic gases. You can choose to install ventilating pipes to remove toxic and harmful gases;
    The unique spill-proof laminate prevents accidental leakage of chemicals from overflowing. The laminate can be adjusted arbitrarily according to user needs, storing more chemical containers, etc., every 6.5cm;
    SYSTEX built-in three-point linkage lock reduces friction or mechanical sparks and reduces static electricity accumulation;
    The safety padlock configuration (optional), realizes the management of double double locks, in line with the regulations of China’s “Regulations on the Safety Management of Hazardous Chemicals”;
    Resin powder coating treatment, the surface is bright, dust-proof, rust-proof and moisture-proof;
    The 53mm deep leak tank prevents the leaked liquid from overflowing, and meets the leak standard;
    The continuous piano hinge makes the cabinet door close and open smoothly;

    1. Adjustable shelf: every 7.6cm, freely adjust, increase the space utilization rate

    2. The 53mm deep leak tank prevents the leaked liquid from overflowing, and meets the leak standard;

    3. Certified anti-static device (optional): The wire clamp reliably connects the standing grounding device to the safety cabinet, and leads the static charge to the ground to prevent static sparks from causing fire accidents.

    4. MSDS management: standard MSDS file box, implementation of chemical file management

    Toxic cabinets’ advantages and features:

    Product Features:

    1, Double-wall construction with 38 mm insulating air space for fire resistance;
    2, Over 1.2 mm thick, fully welded, construction holds squareness for longer life, offering greater protection in a fire;
    3, 5.3 cm leak tight sump at the bottom of toxic safety cabinet’s maximally catches incidental drips;
    4, Door can be fully opened to 180°, easy to operate, three-point latch with a manual lock for better security;
    5, Standardized warning label is highly visible and anti-corrosive;
    6, Unique spill-catcher shelves catch incidental drips and adjust on 6 cm centers;
    7, Durable & chemical resistant, lead-free powder coat inside and outside cabinet, reduce effects of corrosion and humidity;
    8, 2 inches vents with integral flame arresters in both sides of every cabinet;
    9, In terms of OSHA, on outside side panel, there is built-in grounding static connector for easy grounding.

    Advantages

    The cabinet adopts GA/T 73-2015 mechanical anti-theft locks and double-lock control design, which improves the safety of the equipment.

    Effectively achieve the control, safety, anti-theft, and anti-collision of hazardous chemicals; coupled with the unique three-point linkage structure, it makes unlocking easy and convenient.

    toxic cabinet WA810450W parameter

    product type toxic cabinet
    Model WA810450W
    color white
    Volume(Gal/L) 45/170
    Certification CE, FM
    Door type double door/manual
    Adjustable Shelves(Pcs) 2
    Shelf Loading Weight(Kgs) 100
    Ext dimension(H*W*D/cm) 165*109*46
    Packing Dimension(H*W*D/cm 179*116*53
    N.W.(KGs) 124
    G.W.(KGs) 148

    Safety comes from SYSBEL

    Founded in 2003, SYSBEL is the world’s leading provider of environmental safety and employee occupational safety solutions, focusing on the safety management of hazardous chemicals, developing and producing world-leading safe storage, leakage prevention and control and special protection products. SYSBEL has more than 12,600 users and more than 180 partners around the world, and its sales area covers more than 60 countries and regions, including Japan, South Korea, Southeast Asia, Australia, the Middle East, Europe, North and South America, etc. Industrial manufacturing, food, electronics, automotive, environmental protection, public medical and other industries.
