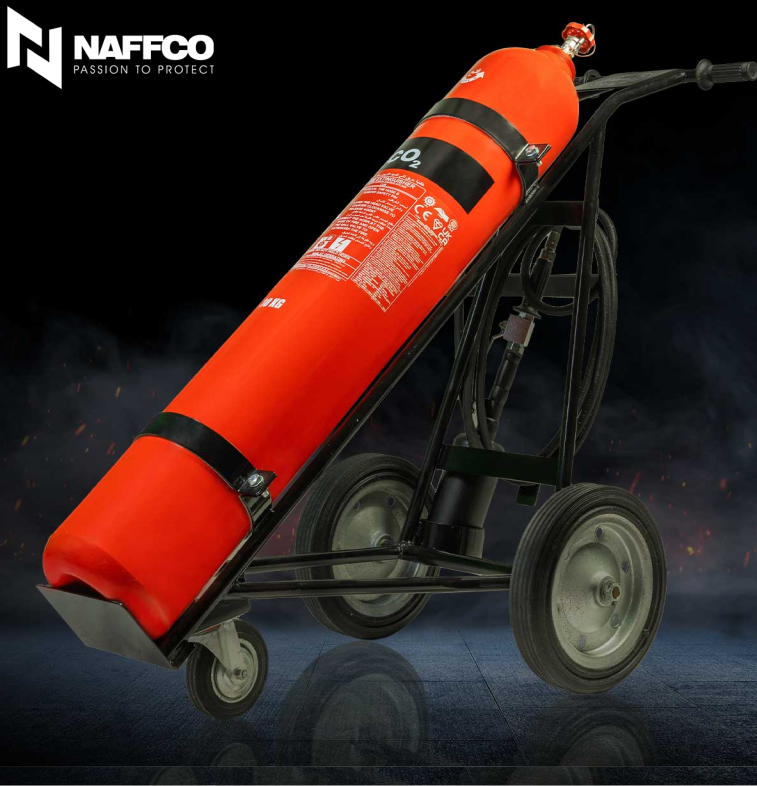

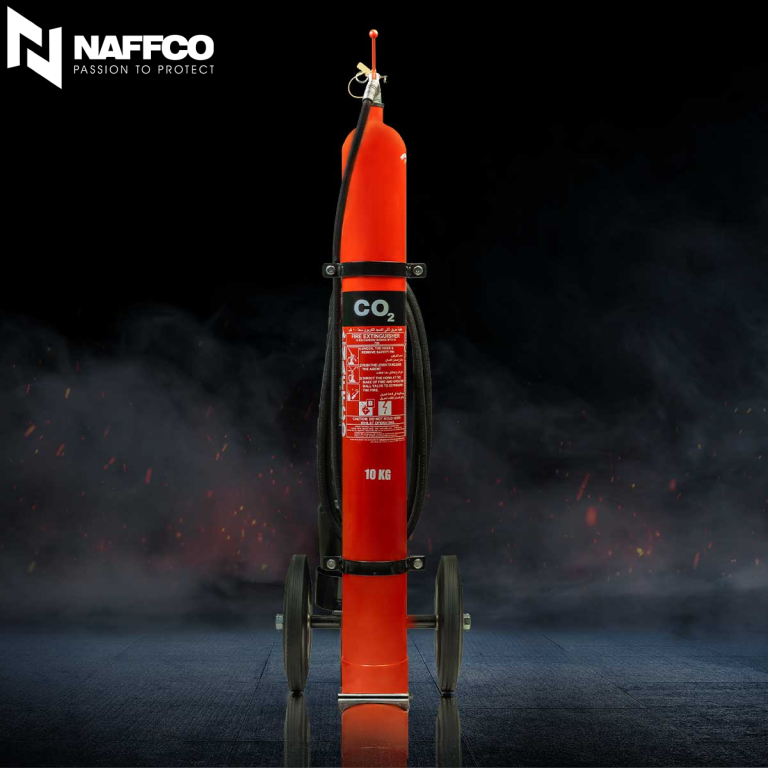

Fire Extinguisher Trolley CO2
Model No: Kitenark-1
₨ 125000 – ₨ 200000
Product Details:
- The Fire Extinguishers are designed to comply with the specifications and requirements of BSEN 1866-1.
- Kitemark approved.
- High-grade brass head valve ensures reliability and Discharge outlet is controlled by High Pressure Ball Valve.
- Cylinder assembly compliance to council directive 2014/68/EU (PED) is certified by BSI(2797).
- High gloss polyester powder painted UV stabilized after shot blasting ensures corrosion resistance under extreme conditions.
- Safety valve is fitted in each extinguisher for maximum safety.
- Discharge nozzle designed to produce a jet of extinguishing gas.
| Model Number | NTC 10X | NTC 30X |
| Extinguisher Capacity | 10 kg | 30 kg |
| Fire Rating | 70B | 113B |
| Working Pressure | 55 – 60 bar @ 25ºC | 55 – 60 bar @ 25ºC |
| Maximum Operating Pressure | 174 bar @ 60ºC | 174 bar @ 60ºC |
| Test Pressure | 250 bar | 250 bar |
| Total Height & Width | 1,435 x 440 mm | 1,095 x 675 mm |
| Total Weight | 52 kg | 125 kg |
| Range of Discharge | 6-8 m | 6-8 m |
| Duration of Discharge | 19 – 21 sec. | 42 – 45 sec. |
| Operating Temperature | -20ºC to +60ºC | -20ºC to +60ºC |
| Propellant | Self Propellant | Self Propellant |
| Hose Size & Length | Bore ⅜’’ x 5 m | Bore ⅜’’ x 5 m |
| Cylinder Material | Carbon Steel | Carbon Manganese Steel |
Additional information
| Weights | 10 kgs, 30 kgs |
|---|
