Model No: Kitenark-3

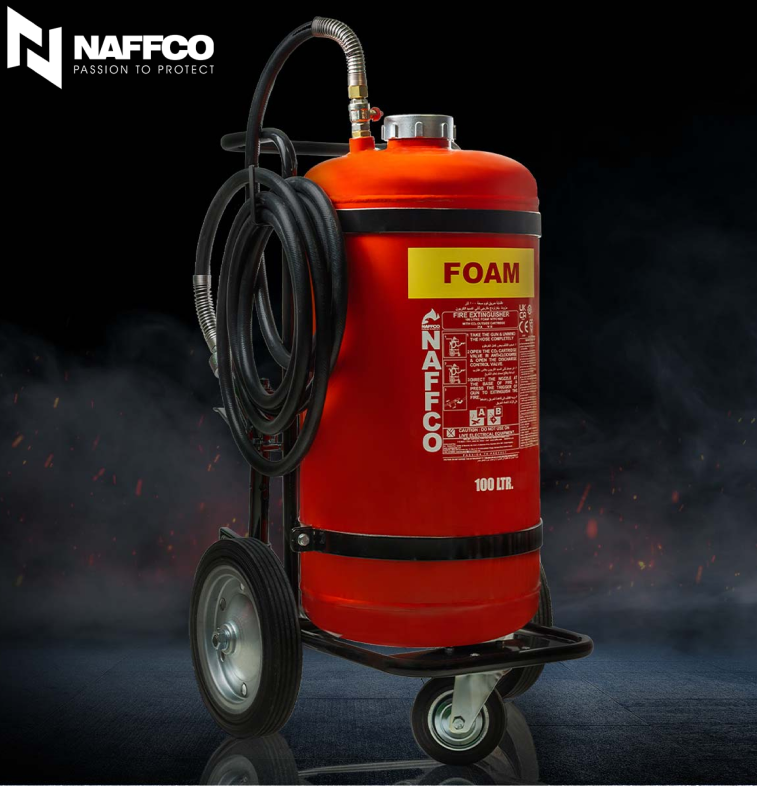

Fire Extinguisher Trolley Foam
₨ 175000
Product Details:
- The fire extinguishers are designed to comply with all the specification requirements of BS EN 1866-1.
- Kitemark and LPCB approved for different capacity extinguishers.
- Cylinders compliance to council directive 2014/68/EU(PED). Certified by BSI (2797)
- Agent used is AFFF (6%) Synthetic Aqueous film forming foam for effective fire extinguishment.
- Incorporated with high pressure CE approved CO2 cylinder as propelling agent.
- Ready for instant use and simple to operate.
- Cart and cylinder are made of rugged steel and welded to meet extreme use conditions.
- Easily transportable.
- Externally coated by Electrostatic powder painting after shot blasting ensures maximum corrosion resistance.
- Internally coated by electrostatic block powder using resin for corrosion resistance.
- Large Brass, nickel chrome plated cap for ease during refilling the agent.
- Cylinder assemblies are designed for easy maintenance by mounting it separately on steel frame and thus can be separated by just removing the steel clamps.
| Model Number | NTFC 50X | NTFC 100X | NTFC 135X |
| Extinguisher capacity | 50 L | 100 L | 135 L |
| Fire Rating | IVB | IVB | IVB |
| Propellant | CO2 | CO2 | CO2 |
| Working Pressure | 14 bar | 14 bar | 14 bar |
| Test Pressure | 32 bar | 32 bar | 32 bar |
| Maximum Working Pressure | 18.5 bar | 18.5 bar | 18.5 bar |
| Total Weight | 112.5 kg | 189 kg | 232 kg |
| Range of Discharge | 6-8 m | 8-10 m | 8-10 m |
| Duration of Discharge | 55-65 sec | 110-120 sec | 160-170 sec |
| Hose Length | 16 mm x 5 m | 16 mm x 7 m | 16 mm x 7 m |
| Operating Temperature | +5°C to +60° C | +5°C to +60° C | +5°C to +60° C |
| Cylinder Material | Hot Rolled steel plate | ||
| Extinguisher Height & Width (mm) | 1065 x 550 | 1100 x 625 | 1005 x 700 |
Additional information
| Weights | 10 kgs, 30 kgs |
|---|
