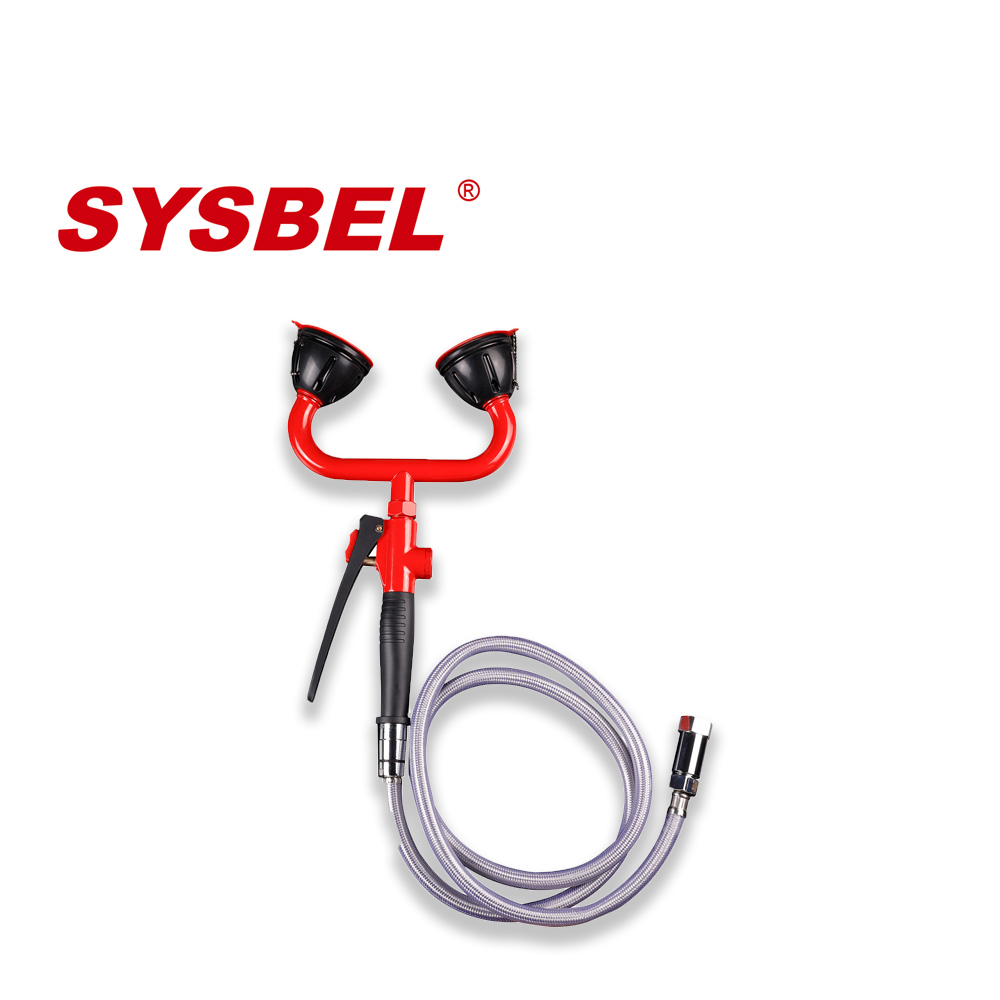

Model No: Double Drench Hose, Sysbel

Drench Hose WG7012R



  • Model: WG7012R
  • Material: 304 Stainless Steel
  • Color: RED
  • Flow Speed: 10 L/min
  • Pressure: 3-6 bar
  • Packing size: 27.4×19.6×15.6 LxWxH (cm)
  • G.W: 1.6 kgs.
  • Certification: ANSI Z358.1, AS 4775

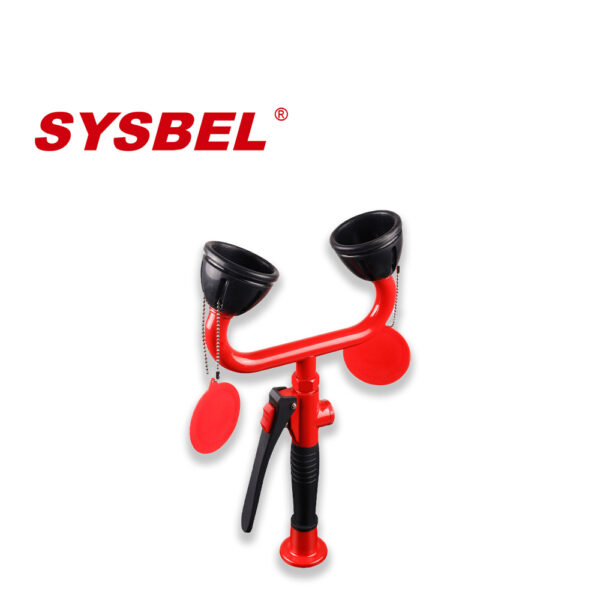

Drench hose units, WG7011R & WG7012R are for deck mounting. Ideal for
rinsing any part of user’s eye, face or body. Under ANSI Z358.1-2014, drench
hose units supplement, but do not replace, other types of emergency equipment.
● To meet the standard of Emergency Eyewash and Shower Equipment in ANSI
Z358.1-2014 and AS4775-2007;
● Single or double spray head is optional, which has dust cove;r
● Forged brass squeeze valve activated by plastic lever handle. Valve has
replaceable stainless steel seat for exceptional durability. Valve closes when
lever handle is released.
● 1.5m soft PVC tube wrapped by PE film relief from rust and leakage, and
internal filter to remove impurities from the water flow.
● Spray heads provide even, continued and comfortable fluid tor riigate the eye;
● Eye wash exceeds minimum water flow of 0.4GPM(1.5LPM) at 210kPa
● Deck flange for countertop mounting, flange has a position tofi x the unit.
