Fire Resistance Cable 2 Core 1.5mm UL Listed Certifed
Fire Resistance Cable 2 Core 1.5mm UL Listed Certifed
Fire Resistance Cable 2 Core 1.5mm UL Listed Certifed
Fire Resistance Cable 2 Core 1.5mm UL Listed Certifed
Fire Resistance Cable 2 Core 1.5mm UL Listed Certifed
Fire Resistance Cable 2 Core 1.5mm UL Listed Certifed

Fire Resistance Cable 2 Core 1.5mm UL Listed Certifed

Model No:

  1. Temperature Rating：-20℃～+105℃
  2. Operating Voltage：300 Volts max
  3. Withstand voltage test ：DC: 2500V / 2S, no breakdown
  4. Minimum insulation resistance ：100 MΩ/KFT at15.6℃
  5. Maximum resistance：13.5 0hms/KM at 20℃
  6. All these cables comply to:
  7. Application of insulation ：UL 1581
  8. Inner Conductor Diameter：UL 1581
  9. Insulation Type ：UL1581
  10. Flame Propagation(single Insulation)：UL2556
  11. Flame Propagation(Multiple cables) ：UL1666
  12. Sheath ：UL 1581

Overview

 Cable construction:

Conductor:

16 AWG solid Bare Copper

Nom.Dia:0.0509±0.0003″(1/1.292±0.008mm)

Insulation:

Type.polyvinyl chloride

Dia over Insulation:0.0847±0.0040″ nom.(2.15±0.10mm)

Drain Wire:1/0.404±0.008mm solid Tinned-Copper

Shield:0.001″(0.025mm)thick Aluminum/Mylar

Color Code:

1.Brn2.Blue

Jacket:

Type.PVC

jacket color : red or white etc

Dia over Jacket:0.2277±0.0118″(5.8±0.3mm)

Cable Marking:

Fire Alarm Cable (UL) E……. FPLR 105℃ 2C/16AWG LLT date

 Electrical Properties:

  1. Temperature Rating：-20℃～+105℃
  2. Operating Voltage：300 Volts max
  3. Withstand voltage test ：DC: 2500V / 2S, no breakdown
  4. Minimum insulation resistance ：100 MΩ/KFT at15.6℃
  5. Maximum resistance：13.5 0hms/KM at 20℃

 Standard:

  1. All these cables comply to:
  2. Application of insulation ：UL 1581
  3. Inner Conductor Diameter：UL 1581
  4. Insulation Type ：UL1581
  5. Flame Propagation(single Insulation)：UL2556
  6. Flame Propagation(Multiple cables) ：UL1666
  7. Sheath ：UL 1581

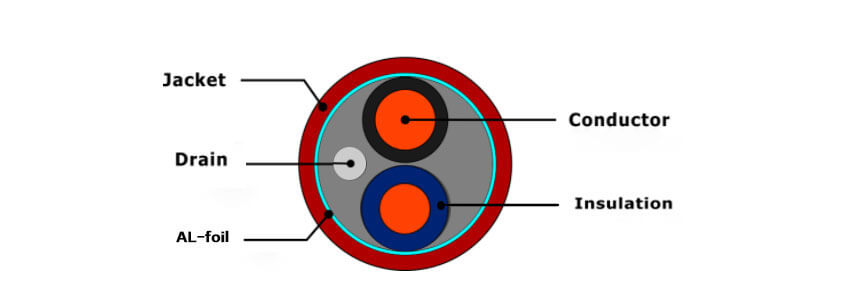

 Cross Section:

fplr-2core-so-structure-diagram

 Applications:

Fire-fighting cables are mainly used for emergency lighting, fire observation, signal sensing system, blower system, communication call system, control equipment system, fire pump and fire alarm system circuit cables, etc.

For example: ★ Office ★ School ★ Airport ★ Underground and tunnel ★ Railway station ★ Computer center ★ Alarm system ★ Traffic control system ★ Fire protection system

 Packaging information

Normally the cables are packed by drum,carton and put on the pallet and other customized packing are available as per international standard.
