3 zone Fire Extinguishant control panel (to BS/EN12094-1) c/w 3A EN54-4 PSU & 128 x64 pixel graphical LCD display. LPCB Approved

Description

The Context Plus EP203 3-Zone Fire Extinguishant Control Panel is a powerful and intelligent solution for gas suppression systems, designed to protect valuable assets in critical environments. LPCB certified to EN12094-1 and EN54-2/4, this high-spec panel ensures full compliance with European firefighting standards and exceptional system reliability.

This extinguishant panel combines the features of a conventional 3-zone fire panel with advanced gas release capabilities, making it ideal for areas where fast and secure fire suppression is critical—such as server rooms, data centers, museums, and archive storage facilities.

Equipped with a high-clarity 128 x 64 pixel graphical LCD display, it delivers real-time feedback for users, installers, and commissioning engineers. The unit includes a powerful 3A EN54-4 switch mode power supply, time-stamped event logs, programmable flood times, and multiple monitored inputs and outputs, ensuring precise control and system transparency.

Key Features

• ✅ LPCB Certified: Fully compliant with EN12094-1, EN54-2, and EN54-4

• ✅ Graphical Display: Large 128×64 pixel LCD for clear visual feedback

• ✅ Gas Suppression Ready: Controls automatic extinguishant release based on programmable zone activations

• ✅ Powerful PSU: Integrated 3A EN54-4 switch mode power supply

• ✅ 3 Fire Zones: Operates as a standard 3-zone fire panel with added extinguishant functionality

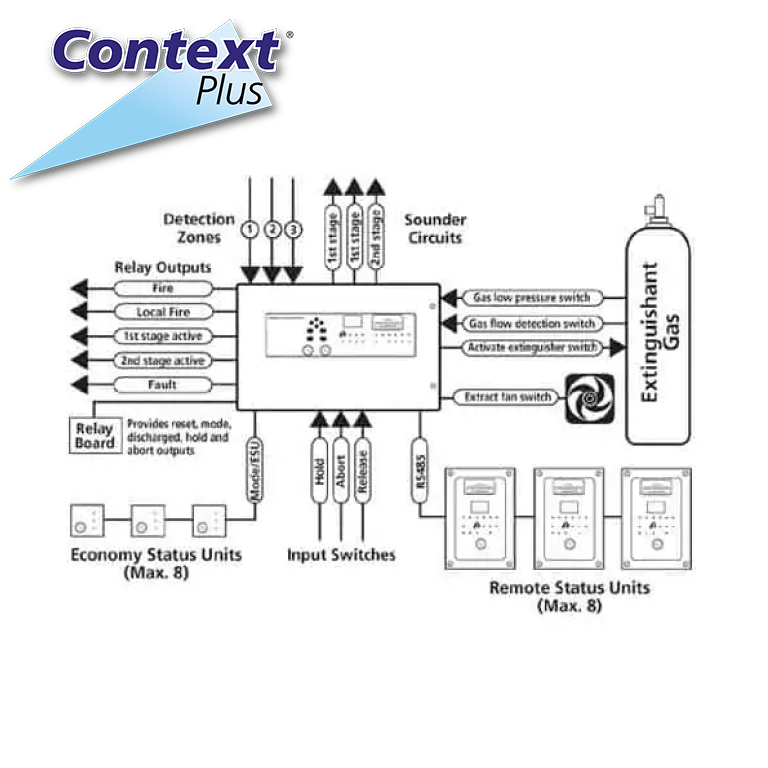

• ✅ Monitored Inputs: 6 monitored inputs including hold and abort

• ✅ Multiple Outputs: Volt-free changeover relays for fire, local fire, 1st/2nd stage active, extractor fan, and fault

• ✅ Remote Capabilities: Supports up to 8 RS485 remote status units with their own LCD displays

• ✅ Custom Functions: Configurable engineering functions, adjustable flood times, and event log with timestamps

• ✅ Robust Installation Design: All electronics (except PSU) mounted on detachable metal bridge plate

• ✅ Accessories Available: Remote status units, abort & hold buttons, line terminators, and relay boards

Ideal For

• Data Centers & Server Rooms

• Telecommunication Hubs

• Museums & Archives

• Laboratories & High-Value Storage Areas

Protect your mission-critical spaces with the Context Plus EP203 Fire Extinguishant Control Panel—a professional-grade, fully certified, and feature-rich solution trusted by engineers across the industry.
